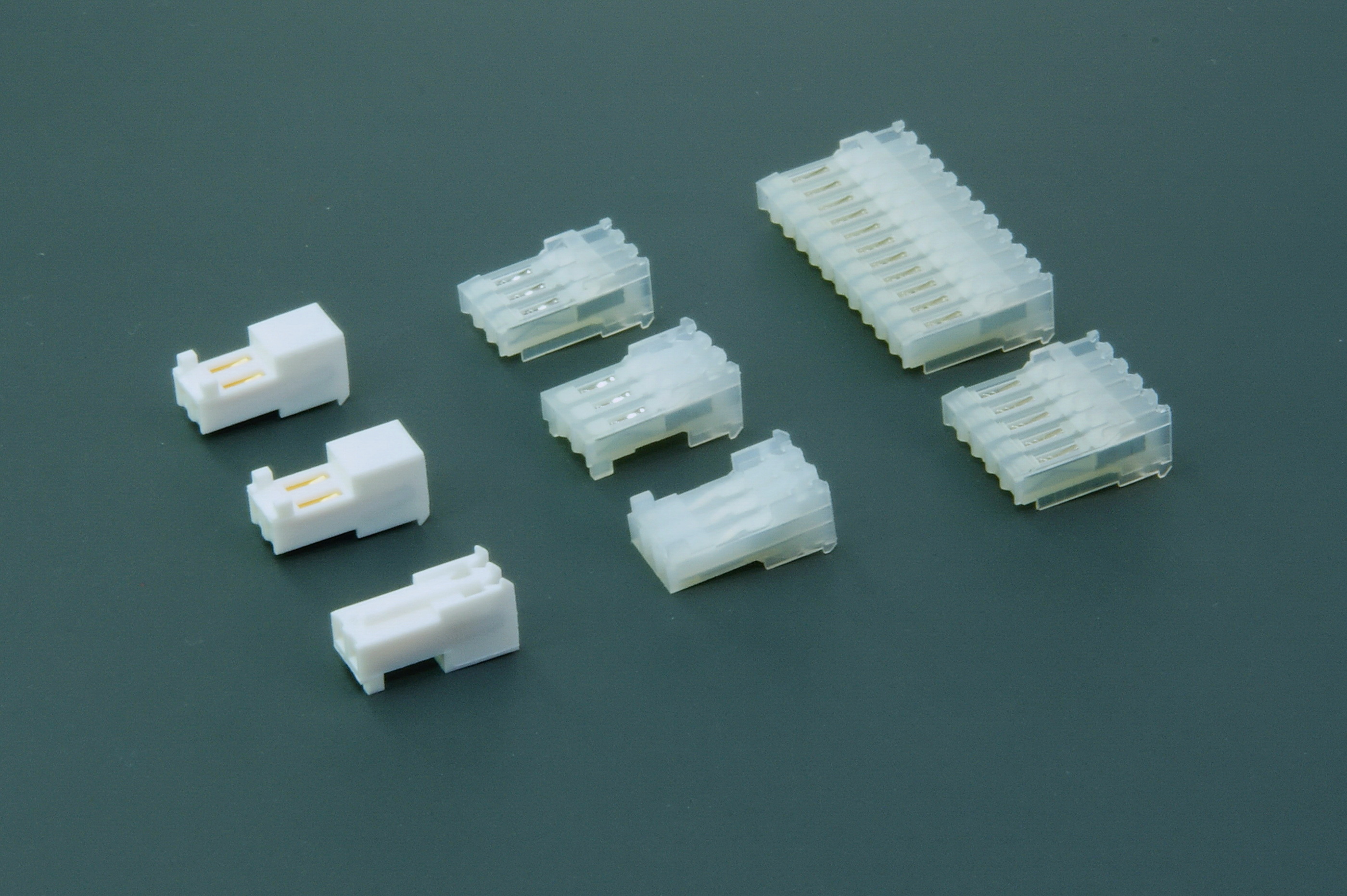

YY-1600 IDC Series
Rated curren : 3A Max.
Rated voltage : 250 V AC ,DC
Contact resistance : 20 mΩ Max.
Insulation resistance : 1,000 MΩ Min.
Dielectric withstand voltage : 1500V AC / minute
Temperature range : -40 °C／+105 °C
Packaging : Header - Bag
