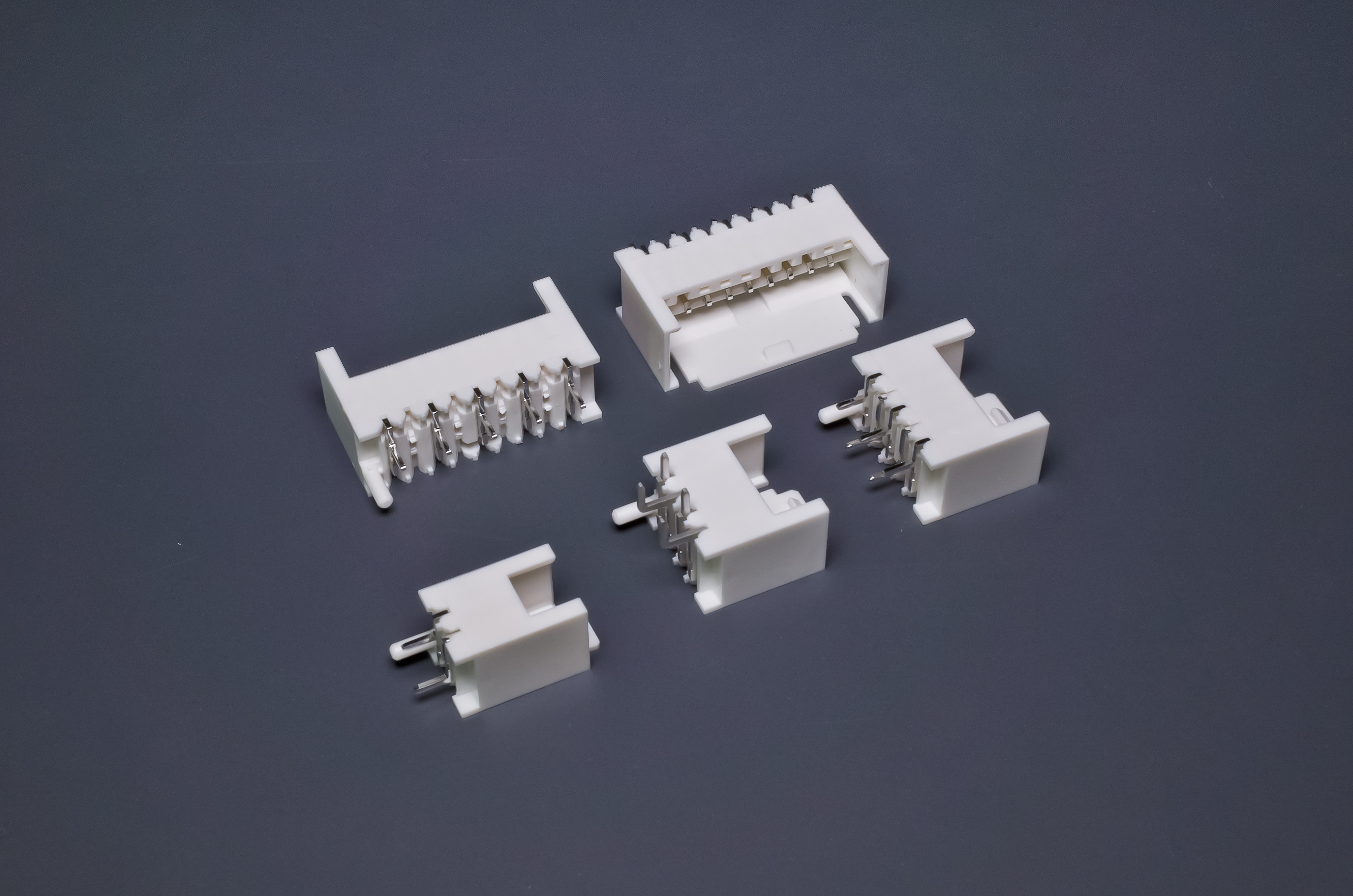

YY-A255* Series

Rated current : 4A at Tamb 40°C / 2A at Tamb 105°C

Rated voltage : 32V AC / DC

Contact resistance : 10 mΩ Max.

Insulation resistance :  1,000 MΩ Min.

Dielectric withstand voltage : 1,400 V AC

Temperature range  : -40 °C／+105 °C

Packaging : Bag or Tube
